WHAT DOES AN RBCOBOT CONSIST OF?

Welding machines

We offer RBCobots with MIG/MAG or TIG welding machines from Böhler.

Böhler Uranos MIG Welding machine
ABOUT THE WELDING MACHINES

MIG/MAG- or TIG-welding?

MIG/MAG: Böhler watercooled

Choose between 320A, 400A  og 500A.

See details for each model below.

TIG: Böhler (coldwire) watercooled

Choose between 270A DC og 320A AC/DC.

See details for each welding machine below.

Details about the welding machines

  • MIG/MAG: 320A

  • MIG/MAG 400A

  • MIG/MAG 500A

  • TIG 270A DC

  • TIG 320A AC/DC

Böhler Uranos MIG Welding machine

MIG/MAG: Böhler watercooled 320A

General

Welding processes MIG/MAG - PULSED MIG/MAG - MMA - TIG DC Lift
Materials Carbon steels - Stainless Steels - Duplex Steels - Aluminium - Copper - Hardfacing
Dimensions L x W x H 620 x 240 x 460 mm
Weight 27.6 kg
Welding
Adjustment range

3 - 320 A

Duty cycle
MIG / MAG - 40 °C

50 % - 320 A
60 % - 310 A
100 % - 250 A

Duty cycle
MIG / MAG - 25 °C

70 % - 320 A
100 % - 270 A
Ø Wire diameter (WF 4000) 1.0 - 1.2 mm (opz .0.6 - 1.6)
Ø Flux cored wire (WF 4000) 1.2 - 2.4 mm
Ø Aluminiumwire (WF 4000) 0.8 - 1.6 mm
Wire speed (WF 4000) 0.5 - 22 m / min
N° rolls (WF 4000)

2 (4 opz)

Wire spool diameter (WF 3000 / WF 4000) Ø 200 / 300mm
Synergic program 60
Welding program memory location 64
U / D MIG / MAG torch compatible YES
PUSH PULL torch compatible

YES

Remote Control compatible YES
RapiDeep 2.0 compatible YES
QuickPulse 2.0 compatible

YES

EN 1090 compatible YES
Weld @ Net  compatible YES



Böhler Uranos MIG Welding machine

MIG/MAG: Böhler watercooled 400 A

General

Welding processes MIG / MAG - PULSED MIG / MAG - MMA - TIG DC Lift
Materials Carbon steels - Stainless Steels - Duplex Steels - Aluminum - Copper - Hardfacing
Dimensions L x W x H 690 x 290 x 510 mm
Weight 36.2 kg
Welding
Adjustment range 3 - 400 A

Duty cycle
MIG / MAG - 40 °C

60 % - 400 A
100 % - 360 A

Duty cycle
MIG / MAG - 25 °C

100 % - 400 A
Ø Wire diameter (WF 4000) 1.0 - 1.2 mm (opz .0.6 - 1.6)
Ø Flux cored wire (WF 4000)

1.2 - 2.4 mm

Ø Aluminiumwire (WF 4000) 0.8 - 1.6 mm
Wire speed (WF 4000) 0.5 - 22.0 m / min
N° rolls (WF 4000) 2 (4 opz)
Wire spool diameter (WF 3000 / WF 4000) Ø 200 / 300mm
Synergic program 60
Welding program memory location 64
 U / D MIG / MAG Torch compatible YES
PUSH PULL torch compatible YES
Remote Control compatible YES
RapiDeep 2.0 compatible YES
QuickPulse 2.0 compatible YES
EN 1090 compatible YES
Weld @ Net  compatible YES



Böhler Uranos MIG Welding machine

MIG/MAG: Böhler watercooled 500A

General
Welding processes MIG/MAG - PULS MIG/MAG - MMA - WIG DC Lift
Materials Carbon steels - Stainless Steels - Duplex Steels - Aluminum - Copper - Hardfacing
Dimensions L x W x H

690 x 290 x 510 mm

Weight 38.5 kg
Welding
Adjustment range 3 - 500 A

Duty cycle

MIG / MAG - 40 °C

50 % - 500 A
60 % - 470 A
100 % - 420 A

Duty cycle

MIG / MAG - 25 °C

80 % - 500 A
100 % - 470 A
Ø Wire diameter (WF 4000) 1.0 - 1.2 mm (opz 0.6 - 1.6)
Ø Flux cored wire(WF 4000) 1.2 - 2.4 mm
Ø Aluminiumwire (WF 4000) 0.8 - 1.6 mm
Wire speed (WF 4000) 0.5 - 22 m / min
N° rolls (WF 4000) 2 (4 opz)
Wire spool diameter (WF 3000 / WF 4000) Ø 200 / 300mm
Synergic program 80
Welding program memory location 64
U / D MIG / MAG torch compatible YES
PUSH PULL torch compatible YES
Remote Control compatible YES
RapiDeep 2.0 compatible YES
QuickPulse 2.0 compatible YES
EN 1090 compatible YES
Weld @ Net  compatible YES



Böhler Uranos TIG Welding machine

TIG: Böhler (coldwire) watercooled: 270A DC

General



Welding processes

TIG DC HF -  TIG DC Lift - MMA

Materials

Carbon steels - Stainless Steels - Cast irons - Copper - Titanium

Dimensions

 500x190x400mm

Weight

16.1kg

Welding


Adjustment range 3A-270A
Duty cycle
TIG - 40 °C
60% - 270A
100% - 250A
Duty cycle
TIG - 25 °C
100% - 270A
U/D TIG Torch compatible YES
Remote Control compatible YES



Böhler Uranos TIG Welding machine

TIG: Böhler (coldwire) watercooled: 320A AC/DC

General
Welding processes TIG AC - TIG MIX AC / DC - TIG DC HF -  TIG DC Lift - MMA
Materials

Carbon steels - Stainless Steels - Aluminum - Nickel - Cast irons - Copper - Titanium

Dimensions L x W x H 620 x 240 x 460 mm
Weight 27.5 kg
Welding
Adjustment range 3 - 320 A

Duty cycle
TIG - 40 °C

40 % - 320 A
60 % - 300 A
100 % - 270 A

Duty cycle
TIG - 25 °C

65 % - 320 A
100 % - 290 A
Welding program memory location 64
U / D TIG Torch compatible YES
Digital Torch compatible YES
Remote Control compatible YES
Weld @ Net  compatible YES
Standard EasyArc YES





Need more information?

We are happy to share more information about the different models and recommend the right type of welding machine for your needs.

Get the full overview

What does an RBCobot consist of in addition to the welding machine?

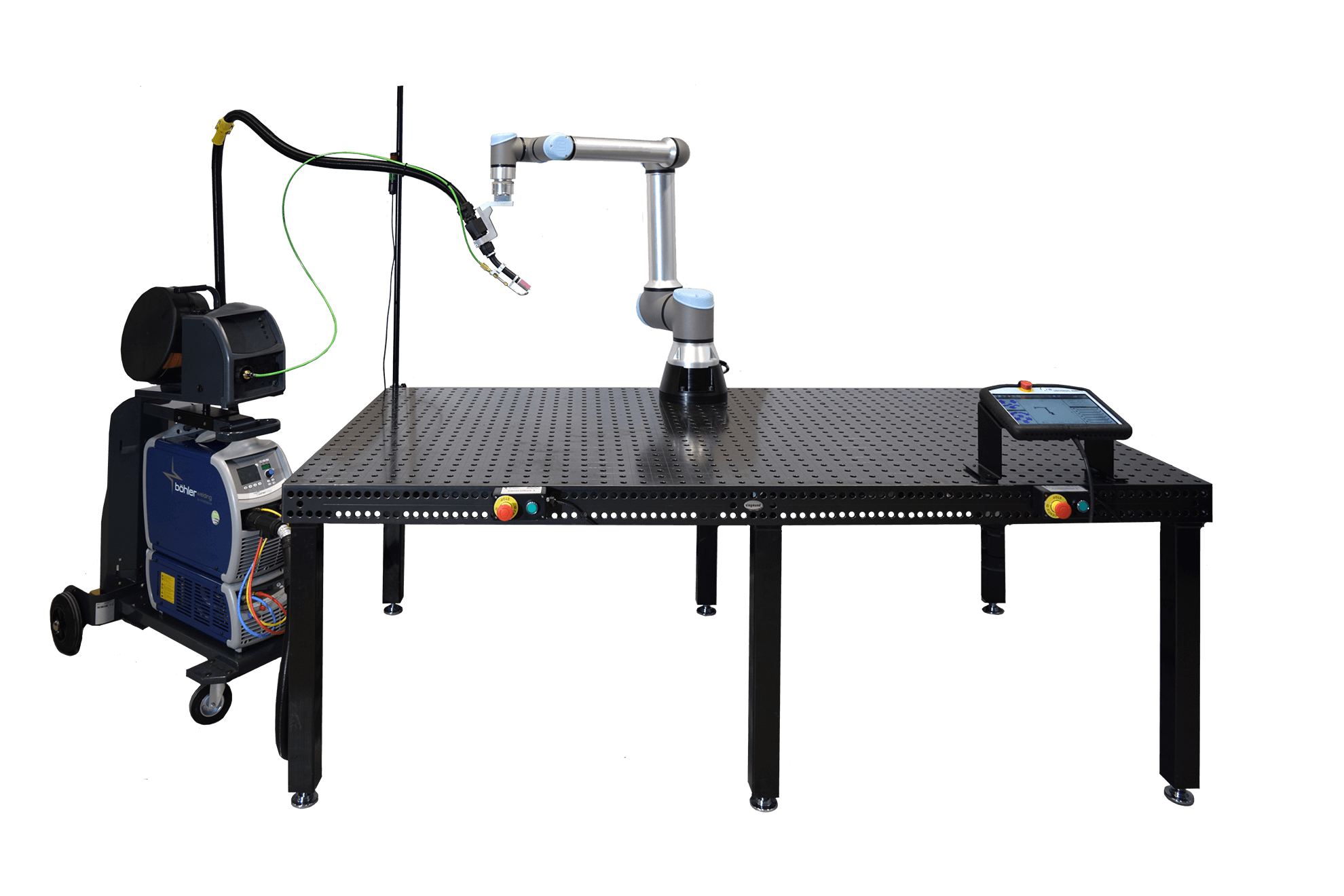

RBCobot welding robot setup with table
